Item |
|
MU-250 |
MU-450 |

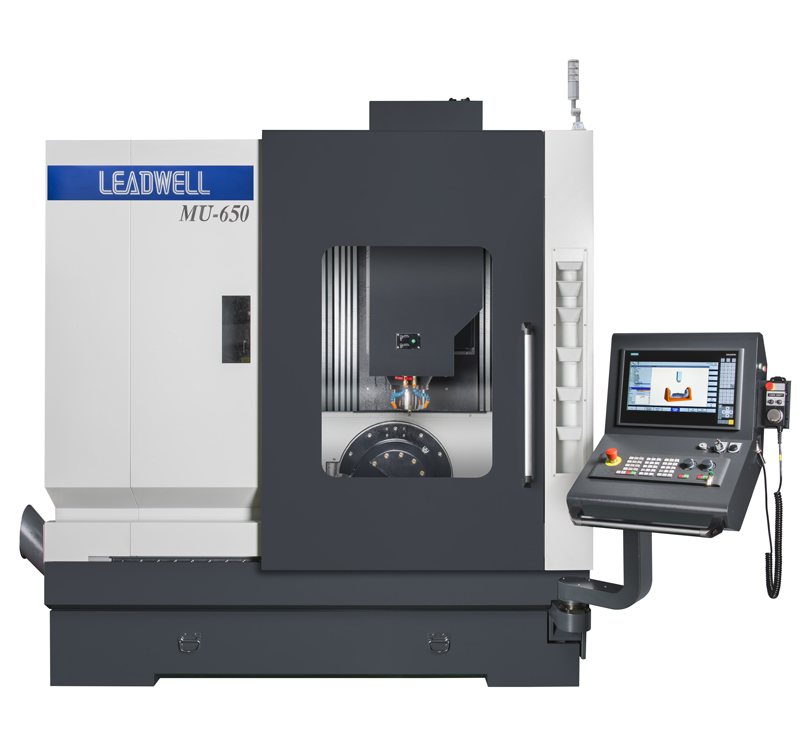

MU-650 |
|
X axis travel |
mm (in) |
350(13.7) |
400(15.7) |
620(24.4) |
|
Y axis travel |
mm (in) |
300(11.8) |
350(13.8) |
520(20.5) |
|
Z axis travel |
mm (in) |
250(9.8) |
350(13.8) |
460(18.1) |
|
Table size |
mm (in) |
250(9.8) |
450(17.7) |
650(25.6) |
|
Spindle speeds |
rpm |
15,000 |
12,000 |
12,000 |
|
Spindle motor (30min) |
kw (HP) |
7.5(10) |
11(14.7) |
11(14.7) |
|
Tool storage capacity |
Pcs |
28 |
30 |
30 |
High Rigidity
– FEA Analysis.
– Optimized Structure for Stable Moving.
– Dual nuts ball screw design in X and Y axis.
– Three axis roller type high rigidity guide way.
– 4 sets of bearings transmission system design.
– B axis motor driving by gear design.
High Reliability
– Ball screw nuts cooling system available
– Ball screw bearing lubrication system design.
– Linear scale (X/Y/Z) & Rotary encoder (B/C) available.
– Magnetic scale available
– Surrounding coolant system
High Efficiency
– Rapid feed rate 36/36/36.
– Spindle speed 12,000rpm.
– 5 axis machining simultaneously.
