Item |
|

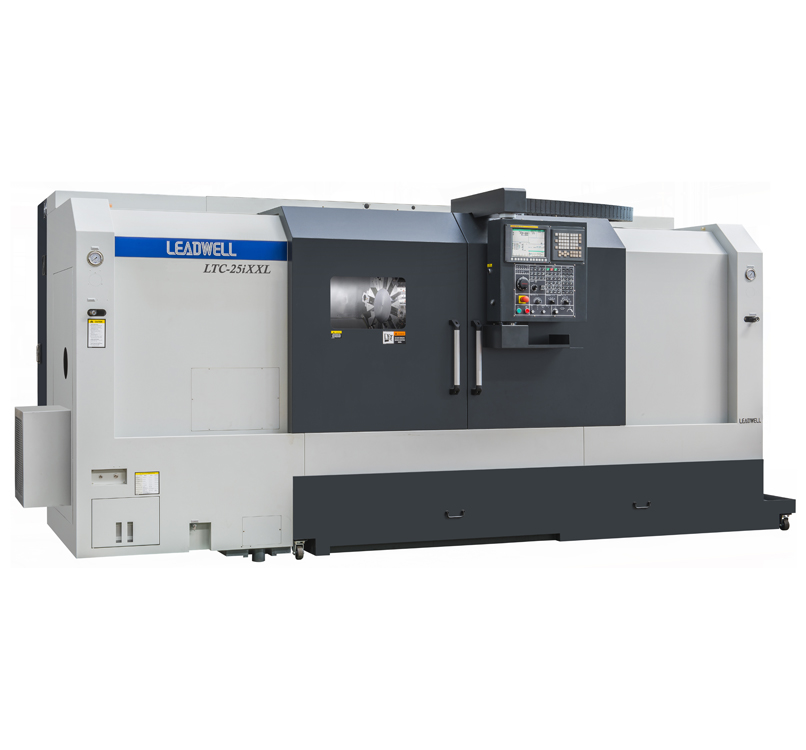

LTC-25i/iL/iXXL/iLV |
|
Max. swing |
mm (in) |
670(26.3) |
|
Max. turning diameter |
mm (in) |
450(17.7) |
|
Max. turning length |
mm (in) |
760/1020/1520/2020(29.9/40.1/59.8/79.5) |
|
Bar capacity |
mm (in) |
77(3) |
|
X axis travel |
mm (in) |
225+25(8.8+1) |
|
Z axis travel |
mm (in) |
790/1050/1550/2050(31.1/41.3/61/80.7) |
|
Spindle speeds range |
rpm |
3500 |
|
Number of tool stations |
pcs |
12 |
|
Item |
|
LTC-25iM/iLM/iXXLM/iLVM |
|
Max. swing |
mm (in) |
637(25) |
|
Max. turning diameter |
mm (in) |
285(11.2) VDI40 , 430(16.9) BMT65 |
|
Max. turning length |
mm (in) |
745/1005/1520/2020(29.3/39.5/59.8/79.5) |
|
Bar capacity |
mm (in) |
77(3) |
|
X axis travel |
mm (in) |
225+15(8.8+0.5) VDI40 215+15(8.4+0.5) BMT65 |
|
Z axis travel |
mm (in) |
790/1050/1550/2050(31.1/41.3/61/80.7) |
|
Spindle speeds range |
rpm |
3500 |
|
Number of tool stations |
pcs |
12 |
MORE POWERFUL
*Powerful main spindle 24.8HP
*Rigid 45 deg. Slant bed cast iron base
INCREASED CAPACITY
*10 inch chuck standard
*77mm bar capacity standard
FASTER/MORE PORDUCTIVE
*Fast rapid rates 15~20m/min
*Spindle speed 3500rpm
*C axis and VDI 40&BMT 65 live tooling version available
ERGONOMIC CONSIDERSATIONS
*Easy to use membrane touch-pad control station
*Easy moving operator door
*Parts catcher available
*No chip or coolant leaks
