Item |
|

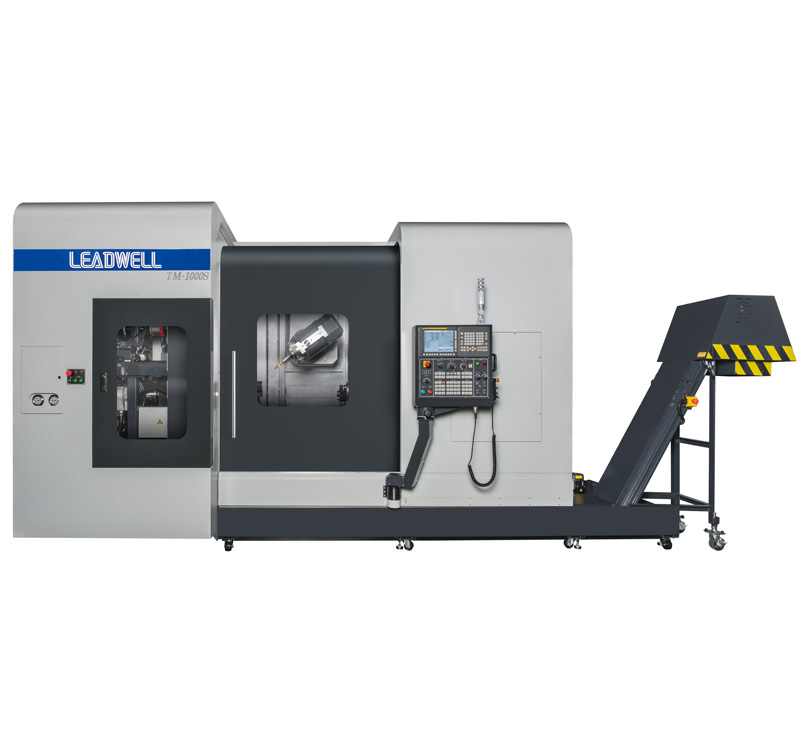

TM-1000/TM-1000S |
|
Max. swing |
mm (in) |
750(29.5) |
|
Max. turning diameter |
mm (in) |
630(24.8) |
|
Max. turning length |
mm (in) |
1050(41.33) |
|
Bar capacity |
mm (in) |
78(3) |
|
X axis travel |
mm (in) |
600+50(23.6+1.96) |
|
Z axis travel |
mm (in) |
1100(43.3) |
|
Y axis travel |
mm (in) |
±130(5.11) |
|
B axis travel |
mm (in) |
240゜(-30゜~+210゜) |
|
Spindle speed (chuck/electro) |
rpm |
3500/12000 |
|
Chuck size |
in |
10 |
|
Type of spindle nose |
|
A2-8 |
|
Spindle motor power |
Kw(hp) |
43(57.6) |
|
Tool storage capacity |
|
40 |
|
X/Z/Y axis rapid traverse |
m(in)/min |
30/30/24(1181/1181/944) |
|
Item |
|
TM-1700/TM-1700S |
|
Max. swing |
mm (in) |
750(29.5) |
|
Max. turning diameter |
mm (in) |
630(24.8) |
|
Max. turning length |
mm (in) |
1700(66.9) |
|
Bar capacity |
mm (in) |
78(3) |
|
X axis travel |
mm (in) |
600+50(23.6+1.96) |
|
Z axis travel |
mm (in) |
1750(69) |
|
Y axis travel |
mm (in) |
±130(5.11) |
|
B axis travel |
mm (in) |
240゜(-30゜~+210゜) |
|
Spindle speed (chuck/electro) |
rpm |
3500/12000 |
|
Chuck size |
in |
10 |
|
Type of spindle nose |
|
A2-8 |
|
Spindle motor power |
Kw(hp) |
43(57.6) |
|
Tool storage capacity |
|
40 |
|
X/Z/Y axis rapid traverse |
m(in)/min |
30/30/24(1181/1181/944) |
|
Item |
|
TM-1700IST |
|
Max. swing |
mm (in) |
750(29.5) |
|
Max. turning diameter |
mm (in) |
630(24.8)B軸 / 420(16.5)下刀塔 |
|
Max. turning length |
mm (in) |
1640(64.6) |
|
Bar capacity |
mm (in) |
70(2.75) |
|
X axis travel |
mm (in) |
600+50(23.6+1.96) |
|
X2 axis travel |
mm (in) |
210+10(8.3+0.4) |
|
Z axis travel |
mm (in) |
1640(64.6) |
|
Z2/Z3 axis travel |
mm (in) |
1560(61.4) |
|
Y axis travel |
mm (in) |
±130(5.11) |
|
B axis travel |
mm (in) |
240゜(-30゜~+210゜) |
|
Spindle speed (chuck/electro) |
rpm |
3500/12000 |
|
Chuck size |
in |
10 |
|
Type of spindle nose |
|
A2-8 |
|
Spindle motor power |
Kw(hp) |
43(57.6) |
|
Tool storage capacity |
|
40 |
|
X/Z/Y axis rapid traverse |
m(in)/min |
30/30/24(1181/1181/944) |
|
Item |
|
TM-2000/TM-2000S |
|
Max. swing |
mm (in) |
750(29.5) |
|
Max. turning diameter |
mm (in) |
630(24.8) |
|
Max. turning length |
mm (in) |
2000(78.7) |
|
Bar capacity |
mm (in) |
78(3) |
|
X axis travel |
mm (in) |
600+50(23.6+1.96) |
|
Z axis travel |
mm (in) |
2050(80.7) |
|
Y axis travel |
mm (in) |
±130(5.11) |
|
B axis travel |
mm (in) |
240゜(-30゜~+210゜) |
|
Spindle speed (chuck/electro) |
rpm |
3500/12000 |
|
Chuck size |
in |
10 |
|
Type of spindle nose |
|
A2-8 |
|
Spindle motor power |
Kw(hp) |
43(57.6) |
|
Tool storage capacity |
|
40 |
|
X/Z/Y axis rapid traverse |
m(in)/min |
30/30/24(1181/1181/944) |
*The multi-function machine with B-axis can easy have bevel angle drilling and cutting work.
*The B-axis is driven by DD build-in motor, the best torque is 3000Nm, and with curved coupling it can easy do a heavy cutting job shop work and also curved surface milling.
*The machine use special Electro Spindle, the spindle speed can reach 12000rpm and torque 62.6Nm, it is a special machine can do first mill and end mill in the same machine.
*The Y-axis design is perpendicular type, and match with our moving column machine structure, the Y-axis have complete movement. It will not have dead space for the travel. (Y-axis travel +/-130mm).(applying for patent now.)
*C axis(chuck spindle): Minimum spindle incremental value: ±0.001(work-piece
angle positioning).
*B axis: continuous operation angel:0.001゜(continuous milling), toothed clutch
indexing angle: 5゜(clamping turning).
*Electronic spindle: spindle speed 12000rpm, indexing angle:15゜(turning tools angle adjustment.)
